Formwork for angular elements
Hydraulic Upside-down-Formwork
![20110307130132_Winkel-updo005.320x0-crop.jpg 20110307130132_Winkel-updo005.320x0-crop.jpg](https://www.howal.com/uploads/pictures/resized/20110307130132_Winkel-updo005.320x0-crop.jpg)
The lateral walls of the Upside-down-formwork are hydraulically opened.
![20110307130128_Winkel-updo001.320x0-crop.jpg 20110307130128_Winkel-updo001.320x0-crop.jpg](https://www.howal.com/uploads/pictures/resized/20110307130128_Winkel-updo001.320x0-crop.jpg)
Through the overhead casting position this formwork system is designed for fair-faced concrete on all visible side.
As a result of milled formwork bottoms and partitions a high quality of the elements is obtained. Special suitable is the Upside-down formwork by using of SCC.
![20110307130133_Winkel-updo006.320x0-crop.jpg 20110307130133_Winkel-updo006.320x0-crop.jpg](https://www.howal.com/uploads/pictures/resized/20110307130133_Winkel-updo006.320x0-crop.jpg)

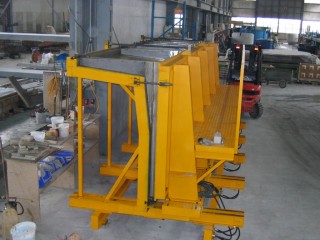

Depending on the element size and available space this formwork system can be produced as single or twin formwork.
![Winkel102.320x240-crop.jpg](https://www.howal.com/uploads/pictures/resized/Winkel102.320x240-crop.jpg)
![Winkel103.320x240-crop.jpg](https://www.howal.com/uploads/pictures/resized/Winkel103.320x240-crop.jpg)
![Winkel104.320x240-crop.jpg](https://www.howal.com/uploads/pictures/resized/Winkel104.320x240-crop.jpg)
![Winkel100.320x240-crop.jpg](https://www.howal.com/uploads/pictures/resized/Winkel100.320x240-crop.jpg)
![Winkel101.320x240-crop.jpg](https://www.howal.com/uploads/pictures/resized/Winkel101.320x240-crop.jpg)
![20110307130129_Winkel-updo002.320x240-crop.jpg](https://www.howal.com/uploads/pictures/resized/20110307130129_Winkel-updo002.320x240-crop.jpg)
![20110307130130_Winkel-updo003.320x240-crop.jpg](https://www.howal.com/uploads/pictures/resized/20110307130130_Winkel-updo003.320x240-crop.jpg)
![20110307130131_Winkel-updo004.320x240-crop.jpg](https://www.howal.com/uploads/pictures/resized/20110307130131_Winkel-updo004.320x240-crop.jpg)
